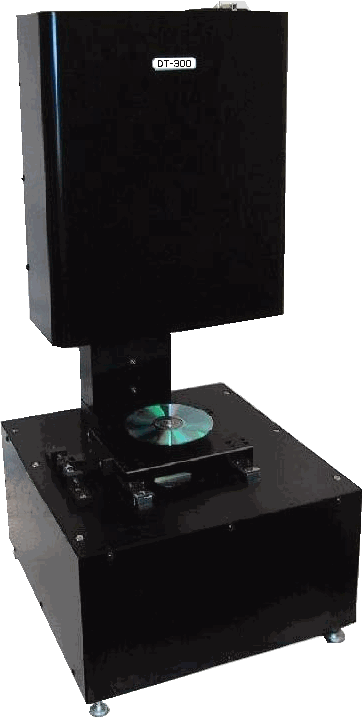

Disc Appearance Inspection System |
|
|
|
|
|
 |
|
|
|
|
|
| Inspectable Disc |
DVD-RAM（2.6GB、4.7GB）,DVR，ＨＤ−ＤＶＤ |
| Inspection Items |
Appearance |
Contamination Scratch,
(The other
kinds of inspection item can also bediscussed.) |
| Tact Time |
Appr. 1.5 second
(The disc loading and
unloading time excluded) |
| Inspection Accuracy |
Defect Size |
Appr. 10μm |
|
|
|
|
|
|
Specification |
|
|
| Chuck |
Vacuum chuck |
| Data Receiver |
CCD Line Camera（5150pix） |
| Illumination |
HalogenLight |
| DI/DO |
IN:16 points OUT:16 points |
| E-NET |
100base-T |
| Software |

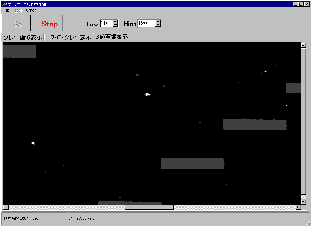

Defect map, Defect image list,Mask function,
Result function |
|
|
|
|
|
|
 |
|
|
Defect |
|
